LM Linear Bushing
Datasheet

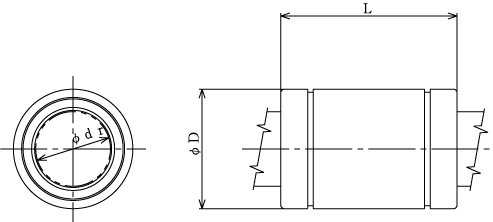

| Model No. | Main dimensions | ||||||
| Inscribed bore diameter | Outer diameter | Length | |||||
| dr | Tolerance | D | Tolerance | L | Tolerance | ||
| Precision | High | Precision/High | |||||
| mm | mm | mm | mm | mm | mm | mm | |
| LM 3 | 3 | 0 | 0 | 7 | 0 | 10 | 0 |
| –0.005 | –0.008 | –0.009 | –0.12 | ||||
| LM 4 | 4 | 0 | 0 | 8 | 0 | 12 | 0 |
| –0.005 | –0.008 | –0.009 | –0.12 | ||||
| LM 5 | 5 | 0 | 0 | 10 | 0 | 15 | 0 |
| –0.005 | –0.008 | –0.009 | –0.12 | ||||
| LM 6 | 6 | 0 | 0 | 12 | 0 | 19 | 0 |
| –0.006 | –0.009 | –0.011 | –0.2 | ||||
| LM 8S | 8 | 0 | 0 | 15 | 0 | 17 | 0 |
| –0.006 | –0.009 | –0.011 | –0.2 | ||||
| LM 8 | 8 | 0 | 0 | 15 | 0 | 24 | 0 |
| –0.006 | –0.009 | –0.011 | –0.2 | ||||
| LM 10 | 10 | 0 | 0 | 19 | 0 | 29 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 12 | 12 | 0 | 0 | 21 | 0 | 30 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 13 | 13 | 0 | 0 | 23 | 0 | 32 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 16 | 16 | 0 | 0 | 28 | 0 | 37 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 20 | 20 | 0 | 0 | 32 | 0 | 42 | 0 |
| –0.007 | –0.010 | –0.016 | –0.2 | ||||
| LM 25 | 25 | 0 | 0 | 40 | 0 | 59 | 0 |
| –0.007 | –0.010 | –0.016 | –0.3 | ||||
| LM 30 | 30 | 0 | 0 | 45 | 0 | 64 | 0 |
| –0.007 | –0.010 | –0.016 | –0.3 | ||||
| LM 35 | 35 | 0 | 0 | 52 | 0 | 70 | 0 |
| –0.008 | –0.012 | –0.019 | –0.3 | ||||
| LM 40 | 40 | 0 | 0 | 60 | 0 | 80 | 0 |
| –0.008 | –0.012 | –0.019 | –0.3 | ||||
| LM 50 | 50 | 0 | 0 | 80 | 0 | 100 | 0 |
| –0.008 | –0.012 | –0.022 | –0.3 | ||||
| LM 60 | 60 | 0 -0.009 | 0 -0.015 | 90 | 0 -0.022 | 110 | 0 -0.3 |
